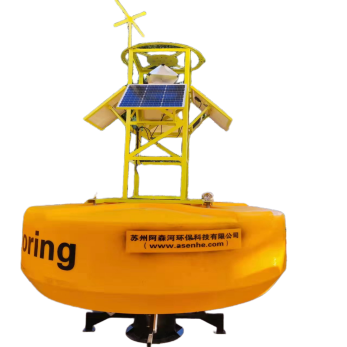

Marine hydrometeorological buoy is mainly used for monitoring hydrological and meteorological parameters in Marine environment. It is mainly composed of floating body, anchor system, battery power supply and monitoring transmission. It can provide important data support for scientific research, resource development and disaster warning .
Meteorological multi-parameter monitoring : the buoy can real-time wind speed, wind direction, temperature, pressure, humidity and other meteorological data, but also can monitor ocean current, wave, water quality these data are of great significance for understanding the ocean dynamic environment, forecast the change of sea state, weather forecast and climate change research . The advanced sensor technology can ensure the high precision and stability of data collection, and provide a reliable data foundation for scientific research . It is also possible to transmit the collected data to the receiving station on shore in real time by means of Beidou satellite communication or 4G, which provides rapid response for emergency disaster warning and offshore operation decision making . Marine hydrometeorological buoys are not only used for meteorological and hydrological observation, but also to monitor the level of nuclear radiation, assist ships in navigation, conduct Marine scientific research, and help fishing operations. For example, nuclear radiation buoys are used to monitor radioactivity levels in waters near nuclear facilities; Navigational buoys are used to indicate shipping lanes and hazardous areas; Scientific research buoys to collect and record data on the Marine environment; Fisheries buoys are used to mark the boundaries of fishing grounds and provide the location of fishing nets .
Specifications
|
Diameter (mm) |
800 |
1800 |
2300 |
2600 |
|
Focal plane (mm) |
1200 |
2000 |
2500 |
3000 |
|
Reserve buoyancy (kg) |
170 |
1401 |
2490 |
3000 |
|
Weight (kg)* |
200 |
850 |
1200 |
2000 |
|
Water line position (mm) |
1100 |
1200 |
1500 |
1500 |
|
Full height (mm) |
2000 |
3000 |
4000 |
4500 |
|
Name |
Marine hydrometeorological buoys |
|
|
Power supply system |
Storage battery |
12VDC80AH/80-200AH |
|
Solar panels |
12v/80W-400W |
|
|
Position indication |
Warning lights; GPS location; AIS |
|
|
Data acquisition |
4G, 5G, wireless communication, Lora, |
|
|
Support monitoring sensor parameters |
Dissolved oxygen measuring range :0-20mg/L Turbidity range :0-1000NTU pH range: 0-14 pH, Ammonia nitrogen range :0-100mg/ Chlorophyll range :0-500ug/L Wave height: Range: 0-25m Accuracy: <±3% Wave period: Range: 1.5-25s Wave direction: Range: 0-360 ° Resolution: 1° Resolution 0.1mm/s Accuracy ±0.15cm/s Flow Direction Range 0-360° Resolution 0.01° |
|
|
Additional customization: visibility, weather |
||
Application Scenarios
- Ocean current research
- Marine Environmental Monitoring
- Marine resource development
Packaging and Transportation
Design your packaging wisely and choose wood with a high density and hard texture to reduce the risk of deforming or cracking over long distances
