Marine Environment Monitoring Buoy

Marine Environment Monitoring Buoy

Marine environmental monitoring buoys are an important tool for Marine environmental monitoring and protection. Integrating AI with autonomous power, it can perform various tasks. It is also a device for real-time monitoring of Marine environmental parameters, and it is capable of long-term, continuous and all-weather work in any harsh environment ‌. The Marine environment monitoring buoy is an unmanned automatic ocean observation station that is fixed in the designated sea area and fluctuates with the waves.
Send Inquiry
Description

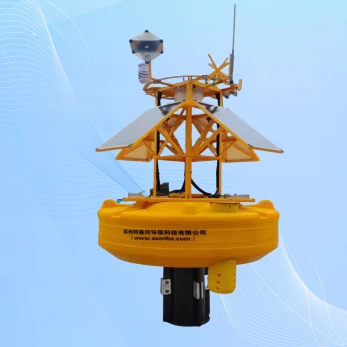

Main map





Marine environmental monitoring buoys are an important tool for Marine environmental monitoring and protection. Integrating AI with autonomous power, it can perform various tasks. It is also a device for real-time monitoring of Marine environmental parameters, and it is capable of long-term, continuous and all-weather work in any harsh environment ‌. The Marine environment monitoring buoy is an unmanned automatic ocean observation station that is fixed in the designated sea area and fluctuates with the waves.

It regularly measures and reports a variety of hydrological and water quality meteorological elements every day, including but not limited to atmospheric wind, pressure, temperature, humidity, visibility, as well as hydrological parameters such as waves, ocean currents, water temperature, salinity, and water quality parameters such as pH value, dissolved oxygen, chlorophyll, nutrient salts and so on ‌. It is equipped with a variety of sensors, can real-time monitoring of seawater temperature, salinity, dissolved oxygen, waves, ocean currents, tides and other environmental parameters. These data are of great significance for understanding the state of the Marine environment, assessing the degree of Marine pollution and predicting Marine disasters. In addition, the buoys can continuously monitor the status of water quality and biodiversity in the protected area, providing a basis for formulating protection measures



Product Specifications





Diameter (mm)

900

1800

2300

3200

Focal plane (mm)

1200

2000

2500

3500

Reserve buoyancy (kg)

120

1401

2490

5000

Weight (kg)*

130

850

1200

2200

Water line position (mm)

1000

1200

1500

1800

Full height (mm)

1200

3000

4000

5000



Name

Marine environmental monitoring buoys

Power supply system

Storage battery

12VDC80AH/80-200AH

Solar panel

12v/80W-400W

Position indication

Warning lights; GPS location; AIS

Data acquisition

4G, 5G, wireless communication, Lora,

Support monitoring sensor parameters

Conductivity range :0-5000uS/cm

pH range: 0-14 pH,

Ammonia nitrogen range :0-100mg/

Wave height: Range: 0-25m Accuracy: <±3%

Wave period: Range: 1.5-25s Wave direction: Range: 0-360 °

Ocean current velocity

Measuring range 0-300cm /s

Accuracy ±0.15cm/s

Measuring range 0-360° magnetic Angle

Resolution 0.01°

Additional customization: visibility, weather



Application Scenarios





1. Marine Fishery Monitoring

2. Port Navigation and security ‌

3. Weather monitoring ‌






Packaging and Transportation


product-1006-367

For small volume articles, wooden cases should be planned and dimensioned to facilitate smooth packing and transportation ‌
