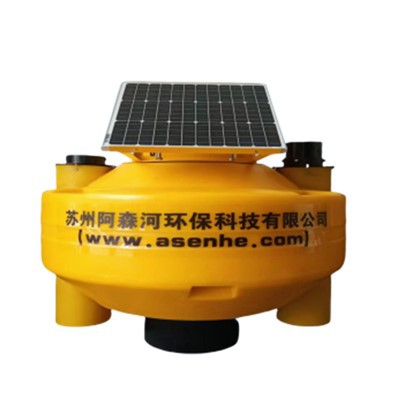

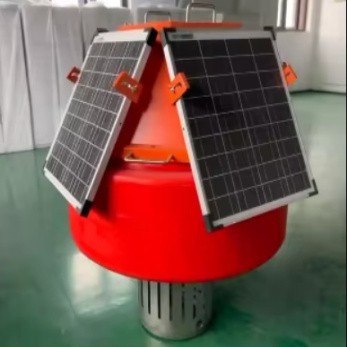

Inland river water quality monitoring buoy ‌ is a kind of monitoring equipment installed in specific waters such as rivers, lakes and reservoirs. It is equipped with various sensors to realize real-time monitoring of water quality.
Send Inquiry
Description

Main map





Inland river water quality monitoring buoy ‌ is a kind of monitoring equipment installed in specific waters such as rivers, lakes and reservoirs. It is equipped with various sensors to realize real-time monitoring of water quality. The sensors can detect the key indicators such as temperature, pH value, dissolved oxygen and turbidity of water body, and transmit the data to cloud platform for analysis and processing, and generate water quality monitoring report ‌. For example, the dissolved oxygen sensor can monitor the dissolved oxygen content in water, which is very important for evaluating the living environment of aquatic organisms ‌. In addition, river water quality buoy monitoring stations can ensure the safety of drinking water and prevent contaminated water from entering the water supply system. These data are also the basis for researchers to analyze water quality trends and build ecosystem models in fields such as hydrology, ecology and environmental science ‌. At the same time, they are easy to deploy and maintain, which greatly reduces operation and maintenance costs. Suitable for more extensive promotion.



Product Specifications





Diameter (mm)

800

1800

2600

3200

Focal plane (mm)

1200

2000

3000

3500

Reserve buoyancy (kg)

150

1401

3000

5000

Weight (kg)*

100

850

2000

2200

Water line position (mm)

500

1200

1500

1800

Full height (mm)

900

3000

4500

5000



Name

River water quality monitoring buoys

Power supply system

Storage battery

12VDC80AH/80-200AH

Solar panels

12v/80W-400W

Position indication

Warning lights; GPS location; AIS

Data acquisition

4G, 5G, wireless communication, Lora,

Support monitoring sensor parameters

Turbidity range :0-1000NTU

Conductivity range :0-5000uS/cm

Ammonia nitrogen range :0-100mg/

UVCOD measuring range :0-400mg/L

Chlorophyll range :0-500ug/L

Wave height: Range: 0-25m

Wave period: Range: 1.5-25s

Wave direction: Range: 0-360 ° Resolution: 1°

Resolution 0.1mm/s

Accuracy ±0.15cm/s

Relative accuracy ±1% reading

Resolution 0.01°

Additional customization: visibility, weather



Application Scenarios





1. Ecological disaster early warning

2. Marine environment monitoring

3. Marine fishery monitoring






Packaging and Transportation


product-724-367

Design your packaging properly, choose hard, durable wood, and make sure that the surface of the wood is free of problems such as cracks and worms.
