Ocean Monitoring Buoy

Ocean Monitoring Buoy

Ocean monitoring buoys. The main functions include monitoring the wind, pressure, temperature, humidity, visibility in the atmosphere, as well as hydrological parameters such as waves, ocean currents, water temperature, salinity, and water quality parameters such as pH value, dissolved oxygen, chlorophyll, nutrient salts, etc ‌. It is an important equipment for Marine environment monitoring.
Send Inquiry
Description

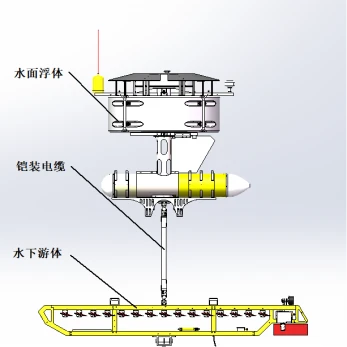

Main map





Ocean monitoring buoys. The main functions include monitoring the wind, pressure, temperature, humidity, visibility in the atmosphere, as well as hydrological parameters such as waves, ocean currents, water temperature, salinity, and water quality parameters such as pH value, dissolved oxygen, chlorophyll, nutrient salts, etc ‌. It is an important equipment for Marine environment monitoring. It can be fixed in the designated sea area for long-term, continuous and all-weather work, and is not affected by the harsh environment ‌. The data is collected in real time by the sensor, and sent to the data center for storage and analysis by the communication equipment using 4G and 5G wireless technology ‌, which provides valuable advice and support for Marine scientific research and Marine ecological environment changes.



Product Specifications





Diameter (mm)

800

2300

2600

3200

Focal plane (mm)

1200

2500

3000

3500

Reserve buoyancy (kg)

70

2490

3000

5000

Weight (kg)*

130

1200

2000

2200

Water line position (mm)

560

1500

1500

1800

Full height (mm)

900

4000

4500

5000



Name

Ocean monitoring buoys

Power supply system

Storage battery

12VDC80AH/80-200AH

Solar panels

12v/80W-400W

Position indication

Warning lights; GPS location; AIS

Data acquisition

4G, 5G, wireless communication, Lora,

Support monitoring sensor parameters

Turbidity range :0-1000NTU

Conductivity range :0-5000uS/cm

pH range: 0-14 pH,

UVCOD range :0-400mg/L

Wave height: Range: 0-25m Accuracy: <±3%

Wave period: Range: 1.5-25s Wave direction: Range: 0-360 °

Ocean current velocity

Measuring range 0-300cm /s

Resolution 0.1mm/s

Range 0-360°

Additional customization: visibility, weather

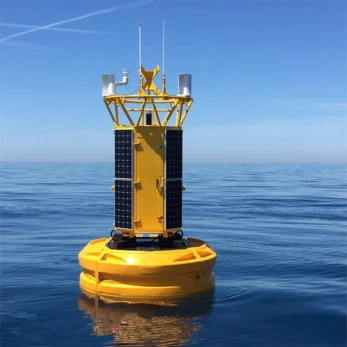

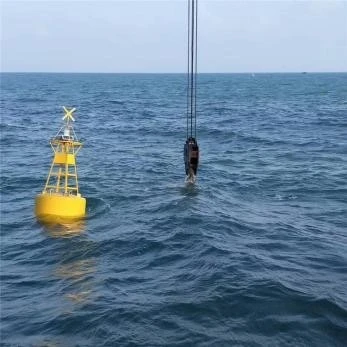

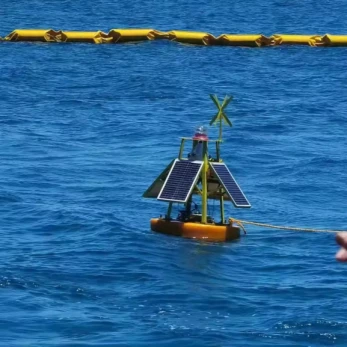

Application Scenarios





1. Marine resource development

2. Marine environmental monitoring

3. Nuclear radiation monitoring ‌






Packaging and Transportation


product-590-307

Reasonably design the packaging, according to the size, characteristics and quantity of the product, to ensure that the product is fully supported and protected inside the wooden box. The wooden box should be waterproof and moisture-proof
