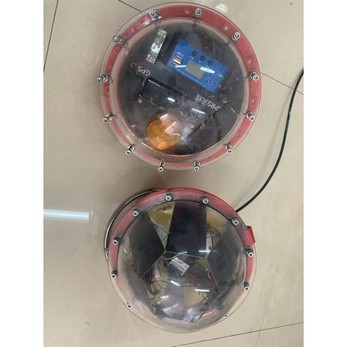

Main map
Surface drifting buoys are mainly used in Marine resources development, Marine environment monitoring, Marine ecological protection and Marine scientific research . To be specific, the drifting buoy is put into the sea by ship or aircraft. The surface drifting buoy drifts with the current, and uses satellites (such as Beidou, Iridium) or wireless real-time system to locate and monitor some data of the current and wave in real time. After collecting these data, it is timely transmitted to the designated software platform and data center. It provides important information support for the Marine research of scientific researchers. Its advantages include: small size, light weight, easy to put and recover; Strong continuous working ability, can provide long-term, continuous observation data; Its structure is mainly composed of solar energy or battery power supply system unit, wireless communication equipment unit including data acquisition and transmission, corrosion resistant floating body unit these 3 parts. It is generally round in appearance, so as to be better suitable for the working environment in the deep sea or the far sea. The design mainly takes into account the principle of ocean wind and wave, and adopts the Lagrange method to measure the surface velocity on a large scale and track the trend of ocean current . The data is transmitted by UHF transmitter. The system is controlled by microcomputer. It is widely used in various experiments in the Global atmospheric research program, such as the Atlantic test, the North Pacific test and the first phase of the Global Atmospheric Research Program global experiment.
Specifications
|
Surface drifting buoy |
|
|
Floating body |
Made of corrosion-resistant, wind-resistant lightweight material, to ensure that the equipment can work stably for a long time under harsh sea conditions , designed service life of more than 10 years |
|
Monitoring sensor system |
Responsible for monitoring a variety of ocean parameters and meteorological data, including wave height, period, direction, flow rate, water temperature, salinity, wind speed, wind direction, air temperature, pressure, humidity, etc. . |
|
Data acquisition and transmission system |
The information collected by the sensors is integrated and processed for transmission in real time to a receiving station on shore by satellite communication or radio waves. |
|
Power supply unit |
Solar power supply system is used to ensure long time independent operation of equipment |
|
Surface drifting buoy it can be fixed point, timing, continuous, accurate measurement of wave height, period, swell, wave spectrum and other wave elements. It is widely used in various ocean monitoring stations |
|
Wave drifting buoy is a small buoy measurement system that uses the principle of gravitational acceleration to measure waves. It can obtain real-time wave height, wave period, wave direction, one-dimensional energy density spectrum, two-dimensional directional spectrum, and spectral characteristic parameters of wind waves and swells. At the same time, it can invert wind speed, wind direction, and other data based on the wave spectrum.
Performance Index

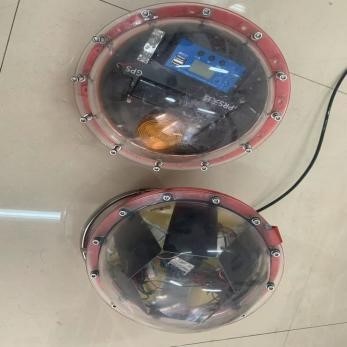

(1) Material: Plastic Material Size: 0.45 meters Weight: 18KG Shape: Spherical
(2) Communication methods: Beidou satellite communication, Iridium satellite communication, 4G module communication.
(3) Photovoltaic panel 1 × 20W, 1X30AH lithium battery, 4G version IoT collector (4-channel) modbus-rtu@rs485 , GPS)
(4) Specific technical parameters: frequency spectrum: 0.04-1.0Hz; Wave direction spectrum: 0-360 ° frequency wave direction energy spectrum: 0.04-1.0Hz, 0-360 °
- Wave height range: 0.01-25m Accuracy:< ±3%
- Cycle range: 1.0-30s Accuracy:<± 0.2 seconds
- Wave direction range: 0-360 ° Accuracy: ± 5 °
- Current:< 50mA
- Supply voltage: 3.3V
- Data interface: TTL level. RS485
Application Scenarios
1. Marine environmental Monitoring
2. Marine environmental protection and research
3. Tracking of oil spill pollution diffusion
Packaging and Transportation
Reasonable design of packaging, according to the size, characteristics and quantity of the product, design a reasonable carton and wooden box structure to ensure that the product is fully supported and protected inside the wooden box. The surface of the wooden cases should be coated with waterproof paint to prevent external moisture from attacking the cases and the goods
