Main map

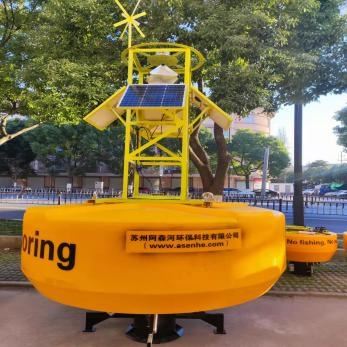

Marine polyethylene water quality monitoring buoy is mainly used for water quality monitoring, the specific functions include real-time monitoring of water quality parameters, providing environmental data support and early warning function. Marine polyethylene water quality monitoring buoy is a comprehensive system integrating a variety of sensors and monitoring equipment, which is usually composed of buoy platform, sensor, photovoltaic power supply system, data acquisition and processing and wireless transmission system, mooring system, satellite positioning system, etc .
The buoy body is made of polyurethane polymer material (polyethylene), which has the advantages of flame retardant, anti-collision, anti-corrosion, anti-bioadhesion, perforation and non-sinking. The solar power supply system can work normally in rainy weather for 15 consecutive days; Support a variety of data transmission protocols. Provide data support for water quality management and scientific research.
Monitoring parameters are easy to expand, including water quality parameters (such as pH, conductivity, dissolved oxygen, turbidity, chlorophyll a, blue-green algae, oil in water, nutrient salts, ammonia nitrogen, COD, etc.), meteorological parameters (such as wind speed, wind direction, temperature, humidity, pressure, rainfall, etc.), hydrological parameters (such as water depth, temperature, flow rate, flow direction, etc.).
In addition, these buoys also have the function of remote monitoring and early warning, support remote real-time monitoring operation, and can send data to the monitoring center through wireless transmission for management personnel to carry out real-time analysis and decision
Product Specifications
|
Diameter (mm) |
800 |
1800 |
2300 |
3200 |
|
Focal plane (mm) |
1260 |
2000 |
2500 |
3500 |
|
Reserve buoyancy (kg) |
75 |
1401 |
2490 |
5000 |
|
Weight (kg)* |
60 |
850 |
1200 |
2200 |
|
Water line position (mm) |
650 |
1200 |
1500 |
1800 |
|
Full height (mm) |
1000 |
3000 |
4000 |
5000 |
|
Name |
Marine polyethylene water quality monitoring buoy |
||||||||||||||||||||||||||||||||||
|
Power supply system |
Rechargeable battery |
12VDC80AH/80-200AH |
|||||||||||||||||||||||||||||||||
|
Solar panels |
12v/80W-400W |
||||||||||||||||||||||||||||||||||
|
Position indication |
Warning lights; GPS location; AIS |
||||||||||||||||||||||||||||||||||
|
Data acquisition |
4G, 5G, wireless communication, Lora, |
||||||||||||||||||||||||||||||||||
|
Support monitoring sensor parameters |
Dissolved oxygen measuring range :0-20mg/L Electrical conductivity range :0-5000uS/cm Ammonia nitrogen range :0-100mg/ UVCOD measuring range :0-400mg/L Wave height: Range: 0-25m Wave period: Range: 1.5-25s Accuracy: <±0.2 seconds Wave direction: Range: 0-360 ° Resolution: 1° Current velocity Measuring range 0-300cm /s Resolution 0.1mm/s Flow Direction Range 0-360° magnetic Angle |
||||||||||||||||||||||||||||||||||
|
Additional customization: visibility, weather |
|||||||||||||||||||||||||||||||||||

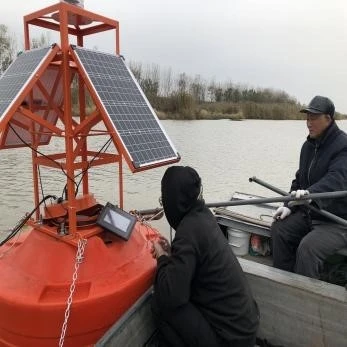

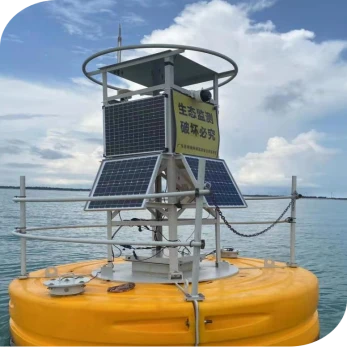

Application Scenarios
1. Ecological disaster warning
2. Nuclear radiation monitoring
3. Marine resources exploitation

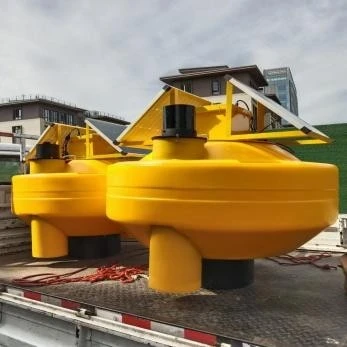

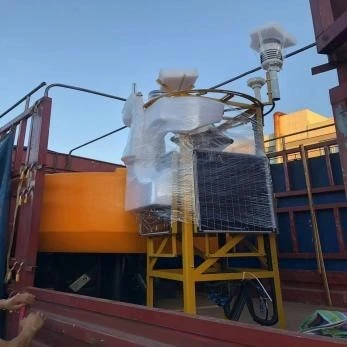

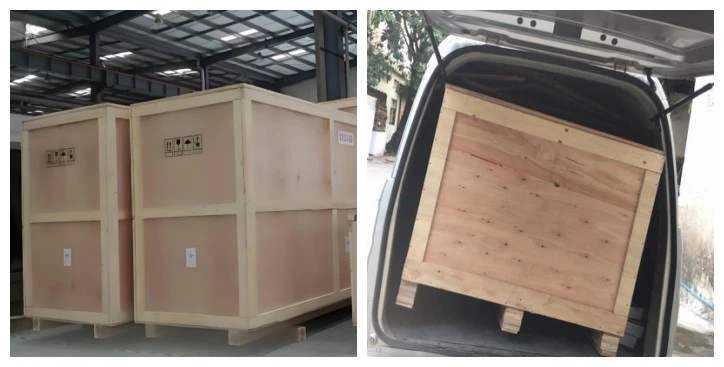

Packaging and Transportation
According to the characteristics of the goods and transportation environment, reasonable planning and design of wooden box size to ensure smooth packaging and transportation
