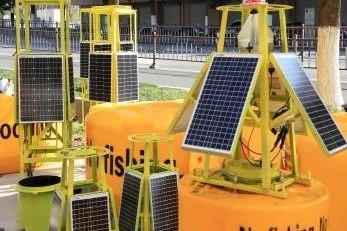

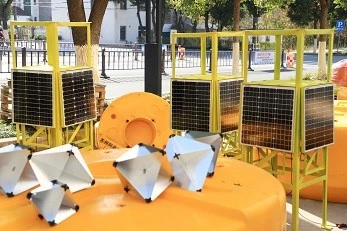

Marine fishery monitoring buoy has many uses in Marine fishery, mainly including fishery navigation and positioning, Marine environment protection, Marine safety early warning, fishery resources management and protection .
By installing GPS and other positioning equipment, the Marine fishery buoy can provide fishermen with accurate navigation and positioning services, and help them plan routes and find the position of fish. In addition, the buoys can also be used to divide fishing areas, identify no-fishing areas and fishery protection areas, and ensure the sustainable utilization of fishery resources. The buoy can also be used as a marker for Marine pollution monitoring stations to monitor the pollutant content, water temperature, salinity and other parameters in seawater in real time, providing data support for Marine environmental protection. In addition, the specially designed buoy can also catch the garbage floating on the sea surface and reduce the harm to the Marine environment At the same time, the Marine fishery buoy can be equipped with acoustic detection equipment, which can detect the distribution and quantity of fish stocks by transmitting and receiving sound waves, and help fishermen and fishery management departments to rationally plan the fishing area and time, improve fishing efficiency and reduce overfishing. By setting up warning buoys in prohibited fishing areas, the fishing intensity can be effectively controlled, and the reproduction and recovery of fish populations can be protected .
Product Specifications
|
Diameter (mm) |
1200 |
2300 |
2600 |
3200 |
|
Focal plane (mm) |
1200 |
2500 |
3000 |
3500 |
|
Reserve buoyancy (kg) |
160 |
2490 |
3000 |
5000 |
|
Weight (kg)* |
240 |
1200 |
2000 |
2200 |
|
Water line position (mm) |
1100 |
1500 |
1500 |
1800 |
|
Full height (mm) |
2400 |
4000 |
4500 |
5000 |
|
Name |
Marine fisheries monitoring buoys |
||||||||||||||||||||||||||||||||||
|
Power supply system |
Storage battery |
12VDC80AH/80-200AH |
|||||||||||||||||||||||||||||||||
|
Solar panels |
12v/80W-400W |
||||||||||||||||||||||||||||||||||
|
Position indication |
Warning lights; GPS location; AIS |
||||||||||||||||||||||||||||||||||
|
Data acquisition |
4G, 5G, wireless communication, Lora, |
||||||||||||||||||||||||||||||||||
|
Support monitoring sensor parameters |
Dissolved oxygen measuring range :0-20mg/L Electrical conductivity range :0-5000uS/cm pH range: 0-14 pH, Chlorophyll range :0-500ug/L Wave height: Range: 25m Wave period: Range: 1.5-25s Wave direction: Range: 0-360 ° Ocean current velocity Resolution 0.1mm/s Relative accuracy ±1% reading Measuring range 0-360° |
||||||||||||||||||||||||||||||||||
|
Additional customization: visibility, weather |
|||||||||||||||||||||||||||||||||||
Application Scenarios
1. Ocean Wind farm
2. Marine Fisheries Monitoring
3. Ecological disaster warning
Packaging and Transportation
Our wooden cases are carefully designed to effectively protect your goods from damage.
