Main map

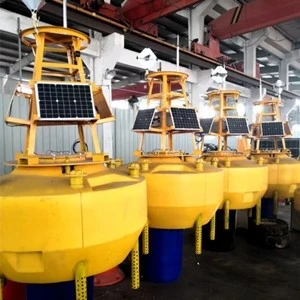

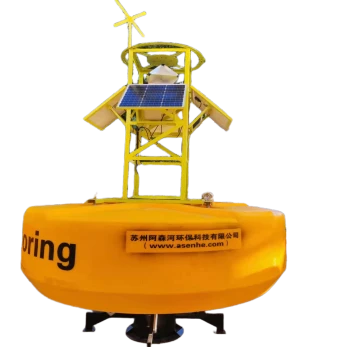

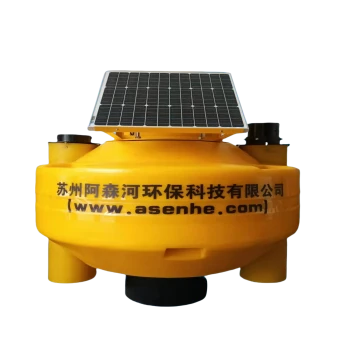

Polymer polyethylene monitoring buoy is a kind of Marine monitoring equipment made of high strength polymer polyethylene material, which has excellent corrosion resistance, impact resistance and weather resistance, and can operate stably in the harsh Marine environment for a long time. The buoy body is light and buoyant, suitable for carrying a variety of sensors, used to monitor water temperature, salinity, flow rate, wave height and meteorological data. Its smooth surface and strong resistance to biological adhesion reduce the need for maintenance. The buoys are usually equipped with solar power supply systems and wireless communication modules to achieve real-time data transmission and remote monitoring. The polymer polyethylene material is environmentally friendly and non-toxic, which meets the requirements of Marine environmental protection. The buoy is widely used in Marine environmental monitoring, water quality analysis, meteorological observation and other fields, providing reliable technical support for Marine scientific research, disaster early warning and resource management.
Product Specifications
|
Diameter (mm) |
1800 |
2300 |
2600 |
3200 |
|
Focal plane (mm) |
2000 |
2500 |
3000 |
3500 |
|
Reserve buoyancy (kg) |
1401 |
2490 |
3000 |
5000 |
|
Weight (kg)* |
850 |
1200 |
2000 |
2200 |
|
Water line position (mm) |
1200 |
1500 |
1500 |
1800 |
|
Full height (mm) |
3000 |
4000 |
4500 |
5000 |
|
Name |
High polymer polyethylene monitoring buoy |
|
|
Power supply system |
Storage battery |
12VDC120AH |
|
Solar panels |
12v/120W |
|
|
Position indication |
Warning lights; GPS location; AIS |
|
|
Data acquisition |
4G, 5G, wireless communication, Lora, |
|
|
Support monitoring sensor parameters |
Wave height: Range: 0-25m Accuracy: <±3% Wave period: Range: 1.5-25s Accuracy: <±0.2 seconds Wave direction: Range: 0-360 ° Resolution: 1° Current velocity: Measuring range 0-300cm /s Resolution 0.1mm/s Accuracy ±0.15cm/s Relative accuracy ±1% reading Flow direction: Range 0-360° |
|

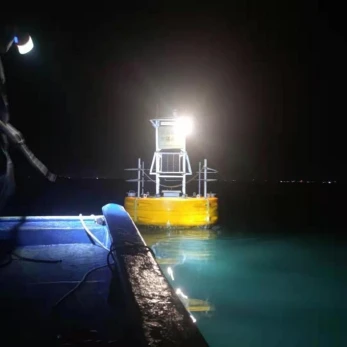

Application Scenarios
1. Ecological disaster early warning
2. Marine pollutant monitoring
3. Port navigation and safety
Packing and transportation
Lining materials such as foam and sponge are used inside the wooden cases to reduce the vibration and extrusion of the products during shipping.
