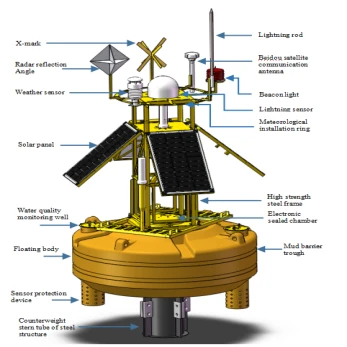

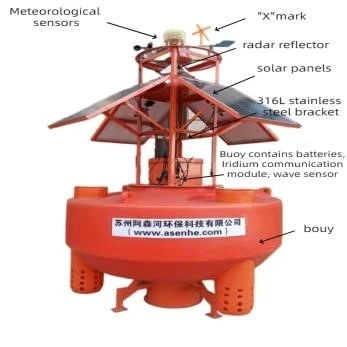

The Marine environmental buoy is an automated observation device for real-time monitoring of Marine environmental parameters. The main structure is composed of buoyancy chamber, integrated sensor, energy system and anchoring system. |
Product Specifications
|
Diameter (mm) |
900 |
1800 |
2600 |
3200 |
|
Focal plane (mm) |
1200 |
2000 |
3000 |
3500 |
|
Reserve buoyancy (kg) |
100 |
1401 |
3000 |
5000 |
|
Weight (kg)* |
150 |
850 |
2000 |
2200 |
|
Water line position (mm) |
400 |
1200 |
1500 |
1800 |
|
Full height (mm) |
600 |
3000 |
4500 |
5000 |
|
Name |
Marine environmental Buoy |
||||||||||||||||||||||||||||||||||
|
Power supply system |
Storage battery |
12VDC80AH/80-200AH |
|||||||||||||||||||||||||||||||||
|
Solar panels |
12v/80W-400W |
||||||||||||||||||||||||||||||||||
|
Position indication |
Warning lights; GPS location; AIS |
||||||||||||||||||||||||||||||||||
|
Data acquisition |
4G, 5G, wireless communication, Lora, |
||||||||||||||||||||||||||||||||||
|
Support monitoring sensor parameters |
Dissolved oxygen measuring range :0-20mg/L Turbidity range :0-1000NTU Conductivity range :0-5000uS/cm Ammonia nitrogen range :0-100mg/ UVCOD measuring range :0-400mg/L Chlorophyll range :0-500ug/L Wave height: Range: 0-25m Accuracy: <±3% Wave period: Range: 1.5-25s Wave direction: Range: 0-360 ° Ocean current velocity Measuring range 0-300cm /s Resolution 0.1mm/s Accuracy ±0.15cm/s Flow Direction Range 0-360° magnetic Angle |
||||||||||||||||||||||||||||||||||
|
Additional customization: visibility, weather |
|||||||||||||||||||||||||||||||||||
Application Scenarios
1. Marine Fishery Monitoring
2. Marine pollutant Monitoring
3. Marine environmental protection and research
Packaging and Transportation
Reasonable design of packaging, according to the size, characteristics and quantity of products, packaging using environmentally friendly materials, in line with international environmental standards.
