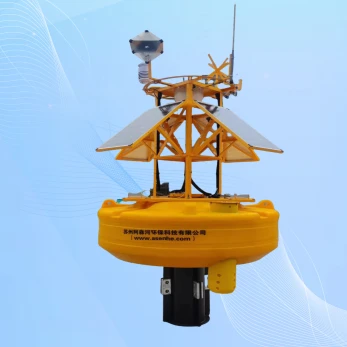

Main map
The Marine water quality monitoring buoy is a comprehensive system that integrates a variety of sensors and monitoring equipment, mainly used for real-time monitoring of Marine water quality parameters. Its main functions include
1.Monitor key parameters such as dissolved oxygen, pH, salinity and temperature in seawater to assess the quality of Marine water quality. These parameters are important indicators reflecting the health status of the Marine environment, and through real-time monitoring of them, water pollution and changes can be detected in time .
2.Monitoring and tracking of pollutants : Marine buoys can also monitor the types and concentrations of pollutants in seawater, including heavy metals, petroleum, plastics and other harmful substances. Through the analysis of these data, the source and diffusion path of pollution can be traced, which provides an important basis for determining pollution responsibility and taking control measures.
3.Red tide early warning and control : By monitoring the temperature, salinity, chlorophyll and other parameters of sea water, the buoy can detect the seedling of red tide in time, provide early warning information for relevant departments, and help take measures to control the development of red tide .
Product Specifications
|
Diameter (mm) |
700 |
1800 |
2600 |
3200 |
|
Focal plane (mm) |
1130 |
2000 |
3000 |
3500 |
|
Reserve buoyancy (kg) |
60 |
1401 |
3000 |
5000 |
|
Weight (kg)* |
30 |
850 |
2000 |
2200 |
|
Water line position (mm) |
500 |
1200 |
1500 |
1800 |
|
Full height (mm) |
900 |
3000 |
4500 |
5000 |
|
Name |
Marine water quality monitoring buoys |
||||||||||||||||||||||||||||||||||
|
Power supply system |
Rechargeable battery |
12VDC80AH/80-200AH |
|||||||||||||||||||||||||||||||||
|
Solar panels |
12v/80W-400W |
||||||||||||||||||||||||||||||||||
|
Position indication |
Warning lights; GPS location; AIS |
||||||||||||||||||||||||||||||||||
|
Data acquisition |
4G, 5G, wireless communication, Lora, |
||||||||||||||||||||||||||||||||||
|
Support monitoring sensor parameters |
Dissolved oxygen measuring range :0-20mg/L Turbidity range :0-1000NTU UVCOD measuring range :0-400mg/L Chlorophyll range :0-500ug/L Wave height: Range: 0-25m Accuracy: <±3% Wave period: Range: 1.5-25s Wave direction: Range: 0-360 ° Resolution: 1° Ocean current velocity Measuring range 0-300cm /s Accuracy ±0.15cm/s Flow Direction Range 0-360° Resolution 0.01° |
||||||||||||||||||||||||||||||||||
|
Additional customization: visibility, weather |
|||||||||||||||||||||||||||||||||||
Application Scenarios
1. Oil spill pollution diffusion tracking
2. Navigational Warnings
3. Ecological disaster warning

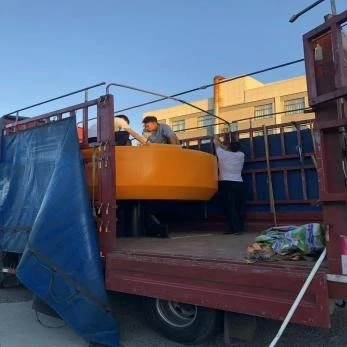

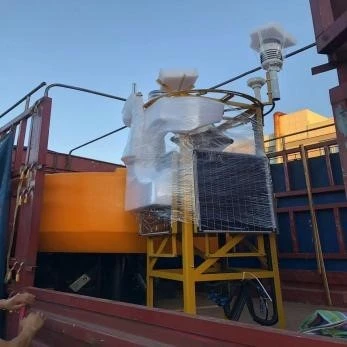

Packaging and Transportation
Reasonable design of packaging, according to the size, characteristics and quantity of the product, design a reasonable carton, wooden box structure to ensure that the product is fully supported and protected inside the wooden box. For fragile or sensitive goods, strengthen the shock-proof performance of the wooden box to reduce the vibration damage during transportation
