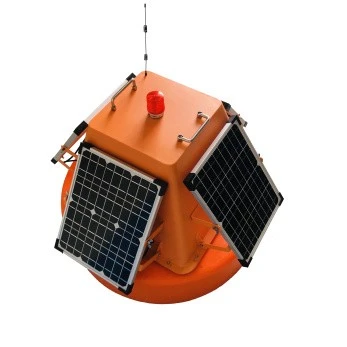

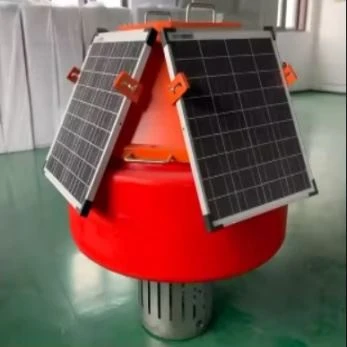

River Buoy

River Buoy

River water quality monitoring buoy is a kind of equipment used to monitor river water quality. Through the water quality sensor carried by the buoy, the parameters in the water body are monitored in real time, such as temperature, PH value, dissolved oxygen, chemical oxygen demand, etc., so as to find the abnormal water quality in time and take corresponding measures
Send Inquiry
Description

Main map





River water quality monitoring buoy is a kind of equipment used to monitor river water quality. Through the water quality sensor carried by the buoy, the parameters in the water body are monitored in real time, such as temperature, PH value, dissolved oxygen, chemical oxygen demand, etc., so as to find the abnormal water quality in time and take corresponding measures

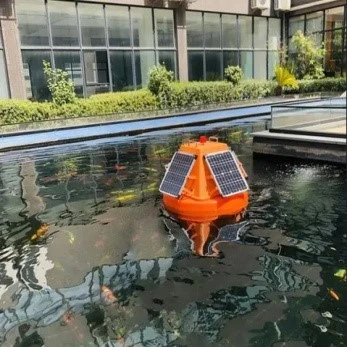

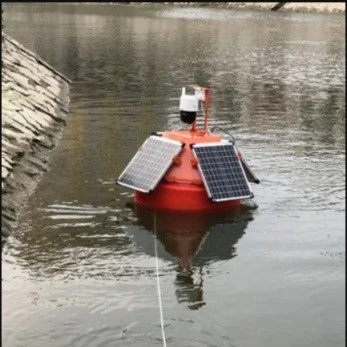

River water quality monitoring buoys are widely used in rivers, lakes, reservoirs, coastal waters and other waters. They can monitor a variety of water quality parameters in the water body in real time, automatically and continuously, and understand the basic characteristics and change rules of the water body. The long-term data accumulation and analysis can provide scientific basis for environmental protection authorities to effectively prevent environmental problems such as cyanobacteria outbreak and water eutrophication ‌. The general deployment of river water quality monitoring buoys requires the selection of suitable waters and strict compliance with scientific norms and safety standards. The modular design of the buoy makes maintenance easier and reduces operation and maintenance costs ‌. Through these measures, it is possible to ensure the accuracy of data and timely detection and treatment of water quality anomalies ‌.



Product Specifications





Diameter (mm)

700

2300

2600

3200

Focal plane (mm)

1130

2500

3000

3500

Reserve buoyancy (kg)

60

2490

3000

5000

Weight (kg)*

20

1200

2000

2200

Water line position (mm)

450

1500

1500

1800

Full height (mm)

850

4000

4500

5000



Name

River water quality monitoring buoys

Power supply system

Storage battery

12VDC80AH/80-200AH

Solar panel

12v/80W-400W

Position indication

Warning lights; GPS location; AIS

Data acquisition

4G, 5G, wireless communication, Lora,

Support monitoring sensor parameters

Dissolved oxygen measuring range :0-20mg/L

Electrical conductivity range :0-5000uS/cm

pH range: 0-14 pH,

UVCOD range :0-400mg/L

Wave height: Range: 0-25m Accuracy: <±3%

Wave period: Range: 1.5-25s Accuracy: <±0.2 seconds

Wave direction: Range: 0-360 ° Resolution: 1°

Measuring range 0-300cm /s

Resolution 0.1mm/s

Relative accuracy ±1% reading

Measuring range 0-360° magnetic Angle

Additional customization: visibility, weather



Application Scenarios





1. Nuclear radiation monitoring ‌

2. Marine environmental protection and research ‌

3. Meteorological monitoring ‌






Packaging and Transportation


product-1006-367

Reasonable design of packaging, leave a certain space inside the wooden box, appropriate filling to improve the stability of the carton and reduce the vibration of the product.

product-1038-367
